Somwati Associates manufactures and supplies a complete range of Hammer Unions designed for high-pressure fluid transfer applications. Our unions ensure quick, safe, and reliable connections for pipelines carrying oil, gas, drilling mud, or other fluids in demanding environments. Precision-forged and heat-treated, these unions deliver superior sealing performance under vibration, shock, and temperature variation.
Hammer Unions are critical components used to connect and disconnect pipe systems quickly and securely without the need for threading or welding. Built for extreme pressure conditions, these unions offer dependable performance in both standard and sour gas service applications.
Each unit from Somwati Associates is machined from high-grade materials such as forged carbon steel and stainless steel, meeting the requirements of API and ASTM standards. All unions are 100% pressure tested to ensure leak-proof performance and long operational life even under cyclic loading.

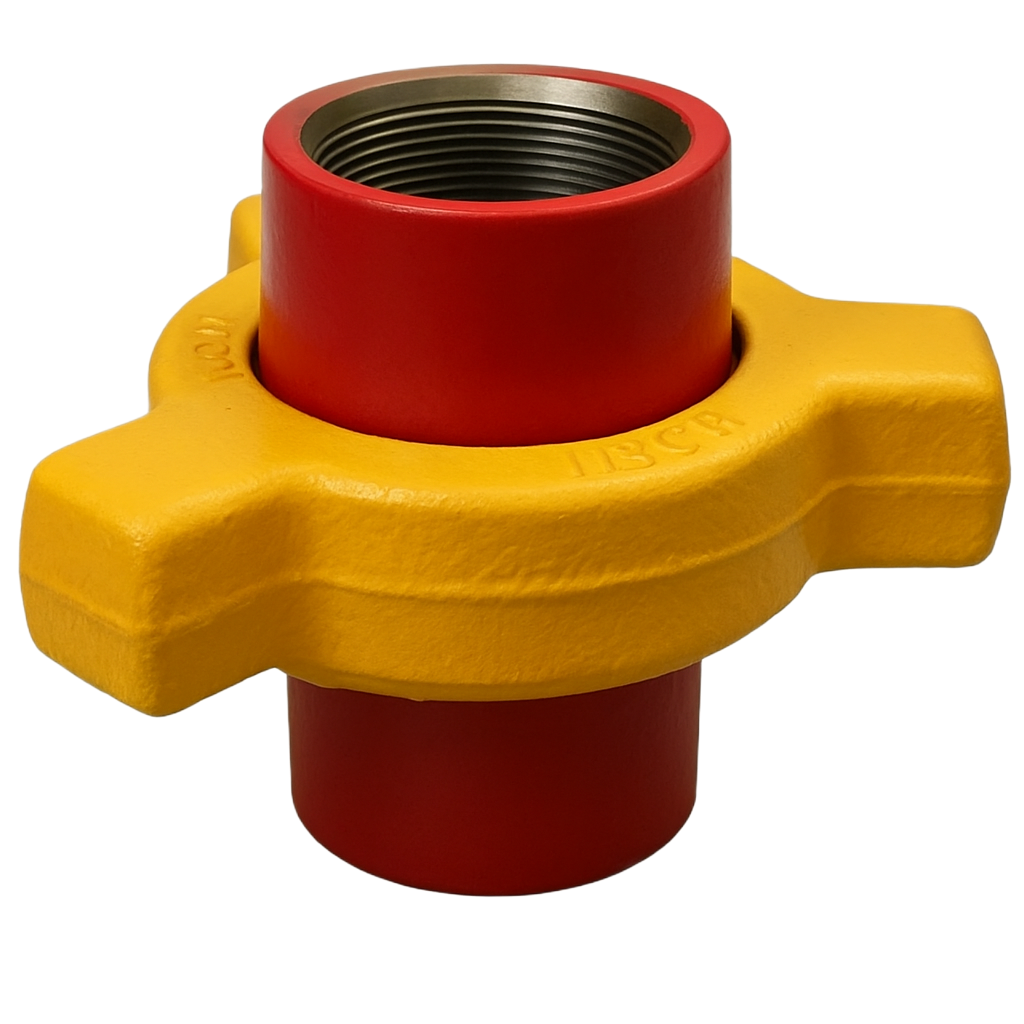

Rated up to 1,000 PSI for low-pressure fluid service applications such as mud, water, and air.

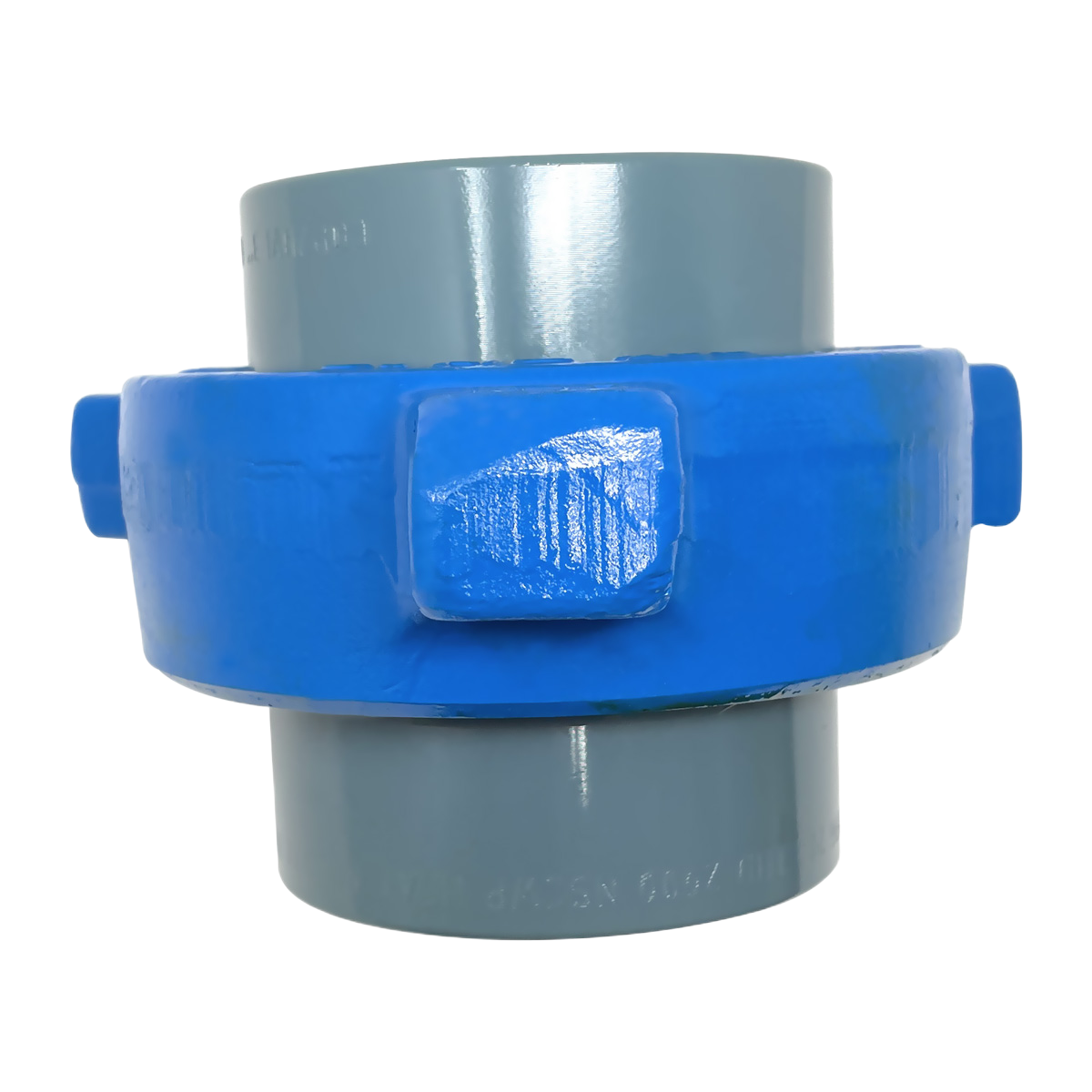

Fig 200 Hammer Union:2,000 PSI working pressure, suitable for standard fluid service connections and manifold lines.
Fig 206 Hammer Union:2,000 PSI non-shock, ideal for air, water, and oil applications requiring quick assembly.

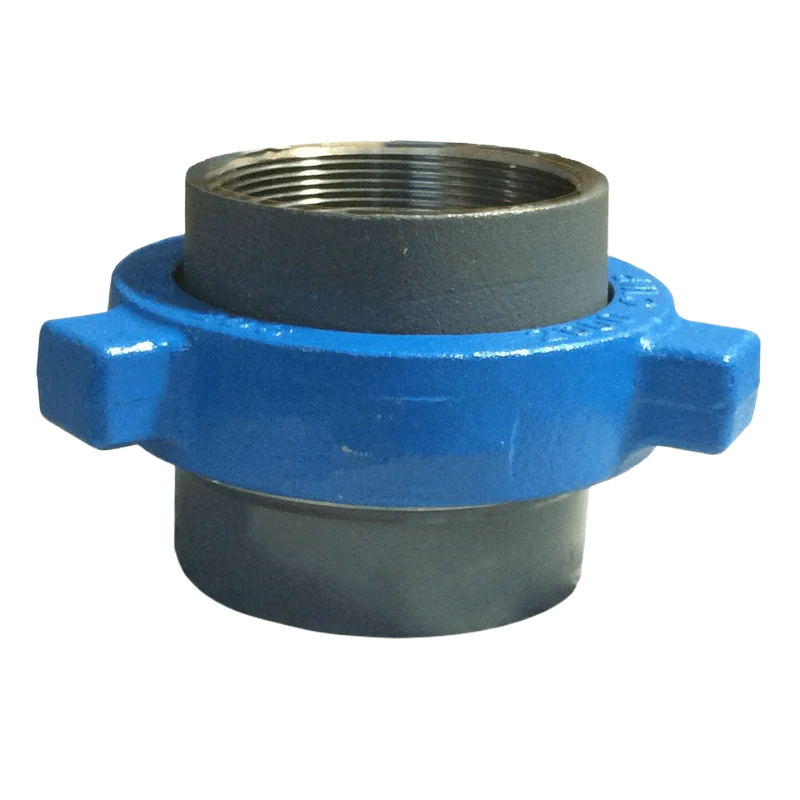

Fig 400 Hammer Union:4,000 PSI for medium-pressure systems used in drilling and production operations.

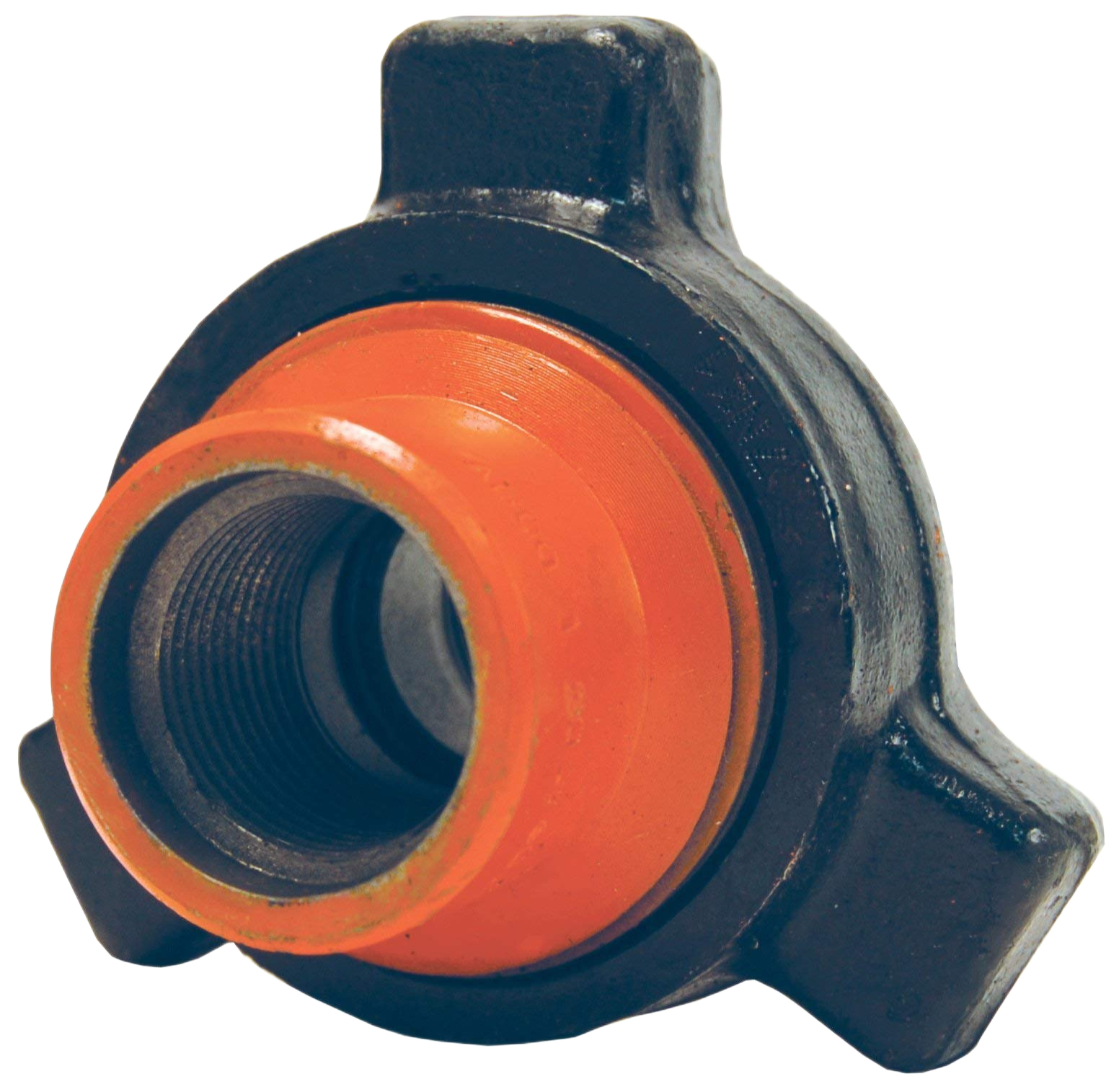

Fig 602 Hammer Union:6,000 PSI forged union designed for high-pressure mud and cementing lines.
Fig 1002 Hammer Union:10,000 PSI rated, designed for extreme service in fracturing and testing operations.
Fig 1502 Hammer Union:15,000 PSI maximum working pressure, built for ultra-high-pressure and sour gas service applications.
All Hammer Unions from Somwati Associates are color-coded for easy identification and interchangeable with other leading industry brands. Each component is shot-peened, phosphated, and precision-lapped for accurate fit and reliable sealing under severe working conditions.
